Slewing Rings/Rotek references/A14-18E1L← View all models

PRIUS BEARINGS · SLEWING RING BEARING

A14-18E1L
slewing ring bearing

A14-18E1L is listed as a Rotek catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 23.25 in, inside diameter 12.88 in, height 3.44 in. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS A14-18E1L external gear slewing ring bearingEXTERNAL GEAR / A14-18E1L

DIMENSIONAL REFERENCE

MODEL A14-18E1L

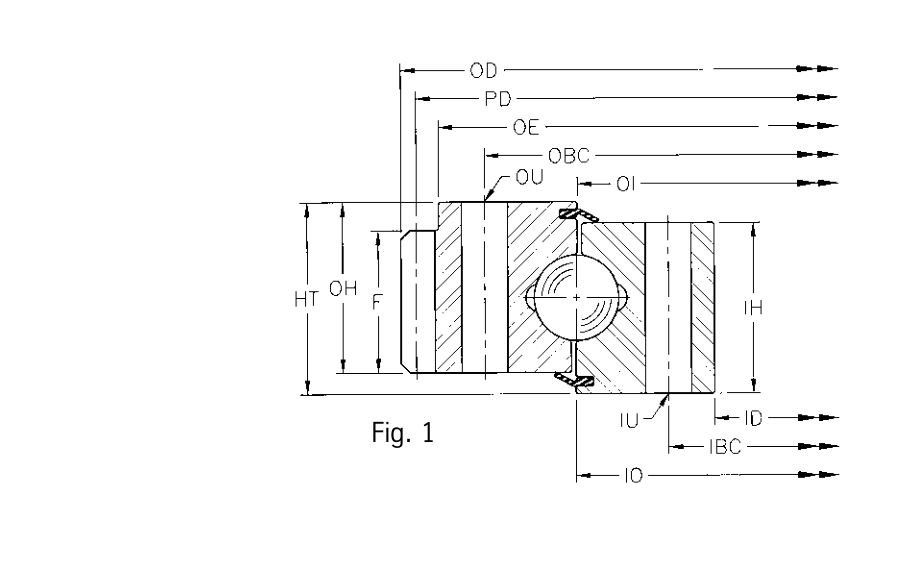

Rotek catalogue section reference for A14-18E1L

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

A14-18E1L
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelA14-18E1L
Brand / alternativePRIUS BEARINGS · Alternative for Rotek
TypeFour-point contact ball · External gear
Outer hole circle OBC (in)21.250
Outer mounting hole count18
Inner hole circle IBC (in)14.375
Gear pitch diameter PD (in)23.250
Diametral pitch DP4
Gear tooth count93
Tangential tooth load F (lb)14300
Outside diameter OD (in)23.250
Inside diameter ID (in)12.88
Overall height HT (in)3.44
Weight (lb)252
Inner mounting hole count24
Nominal thrust capacity (lb)618000
Nominal moment capacity (ft-lb)210000
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Rotek · Four-point contact ball · External gearA14-18E1L1outside diameter 23.25 in, inside diameter 12.88 in, height 3.44 in →Rotek · Four-point contact ball · External gearA14-22E1Boutside diameter 28.4 in, inside diameter 17.13 in, height 3.44 in →Rotek · Four-point contact ball · External gearA14-22E1B1outside diameter 28.4 in, inside diameter 17.13 in, height 3.44 in →Rotek · Four-point contact ball · External gearA14-34E31outside diameter 38.65 in, inside diameter 28.25 in, height 4.92 in →

FREQUENT QUESTIONS

Can PRIUS review an alternative for A14-18E1L?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For A14-18E1L, provide the complete reference and suffix, confirm outside diameter 23.25 in, inside diameter 12.88 in, height 3.44 in, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
