Slewing Rings/Rotek references/A10-22E5A← View all models

PRIUS BEARINGS · SLEWING RING BEARING

A10-22E5A
slewing ring bearing

A10-22E5A is listed as a Rotek catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 27.314 in, inside diameter 17.38 in, height 3.31 in. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS A10-22E5A external gear slewing ring bearingEXTERNAL GEAR / A10-22E5A

DIMENSIONAL REFERENCE

MODEL A10-22E5A

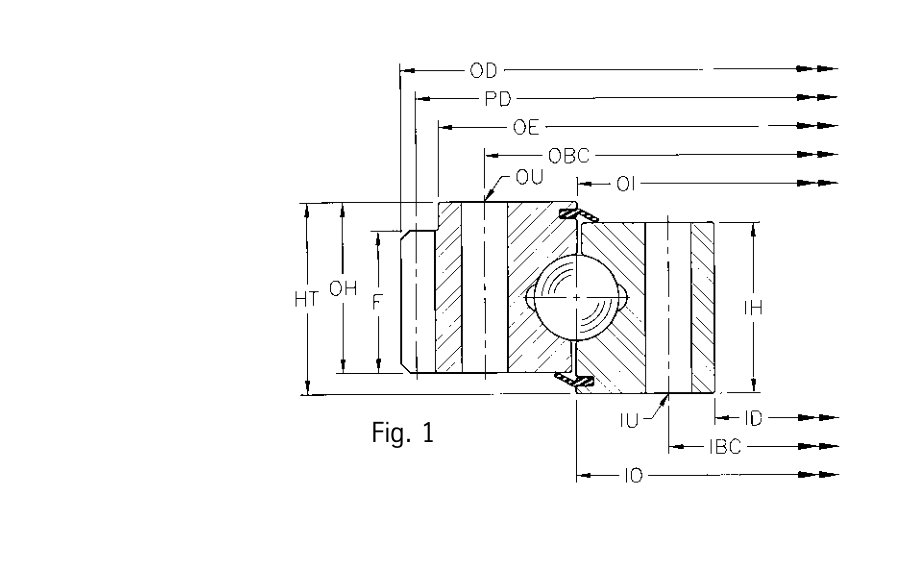

Rotek catalogue section reference for A10-22E5A

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

A10-22E5A
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelA10-22E5A
Brand / alternativePRIUS BEARINGS · Alternative for Rotek
TypeFour-point contact ball · External gear
Outside diameter OD (in)27.314
Inside diameter ID (in)17.38
Overall height HT (in)3.31
Weight (lb)240
Outer hole circle OBC (in)24.375
Outer mounting hole count30
Inner hole circle IBC (in)18.750
Nominal thrust capacity (lb)570000
Nominal moment capacity (ft-lb)234000
Gear pitch diameter PD (in)26.857
Diametral pitch DP3.5
Gear tooth count94
Tangential tooth load F (lb)148005
Inner mounting hole count30
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Rotek · Four-point contact ball · External gearA10-34E6outside diameter 39.4 in, inside diameter 29.5 in, height 3.88 in →Rotek · Four-point contact ball · External gearA10-47E1outside diameter 54.3 in, inside diameter 42 in, height 4.63 in →Rotek · Four-point contact ball · Internal gearA10-32N1Aoutside diameter 36.75 in, inside diameter 26.4 in, height 3.86 in →Rotek · Four-point contact ball · GearlessA10-35P1Aoutside diameter 39 in, inside diameter 32.12 in, height 3.38 in →

FREQUENT QUESTIONS

Can PRIUS review an alternative for A10-22E5A?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For A10-22E5A, provide the complete reference and suffix, confirm outside diameter 27.314 in, inside diameter 17.38 in, height 3.31 in, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
