Slewing Rings/Rotek references/3R10-88N2B← View all models

PRIUS BEARINGS · SLEWING RING BEARING

3R10-88N2B
slewing ring bearing

3R10-88N2B is listed as a Rotek catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 96 in, inside diameter 75.2 in, height 7 in. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 3R10-88N2B

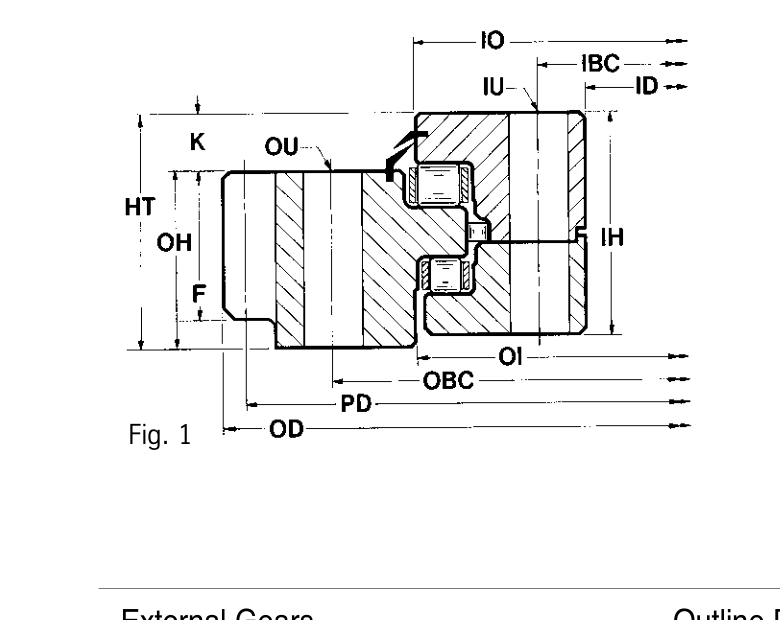

Rotek catalogue section reference for 3R10-88N2B

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

3R10-88N2B
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

Model3R10-88N2B
Brand / alternativePRIUS BEARINGS · Alternative for Rotek
TypeFour-point contact ball · Internal gear
Outside diameter OD (in)96.00
Inside diameter ID (in)75.200
Overall height HT (in)7.00
Gear pitch diameter PD (in)76.800
Diametral pitch DP1.25
Gear tooth count96
Tangential tooth load F (lb)73800
Weight (lb)4014
Outer mounting hole count48
Inner mounting hole count40
Static radial capacity (lb)545000
Nominal thrust capacity (lb)3708000
Nominal moment capacity (ft-lb)5570000
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Rotek · Four-point contact ball · Internal gear3R10-85N2Aoutside diameter 92.75 in, inside diameter 72.164 in, height 7.5 in →Rotek · Four-point contact ball · Internal gear3R8-88N9outside diameter 94.88 in, inside diameter 78.267 in, height 5.79 in →Rotek · Four-point contact ball · Internal gear3R8-79N9outside diameter 85.43 in, inside diameter 69.372 in, height 5.79 in →Rotek · Four-point contact ball · Internal gear3R8-98N9outside diameter 105.12 in, inside diameter 88.267 in, height 5.79 in →

FREQUENT QUESTIONS

Can PRIUS review an alternative for 3R10-88N2B?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For 3R10-88N2B, provide the complete reference and suffix, confirm outside diameter 96 in, inside diameter 75.2 in, height 7 in, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
