PRIUS BEARINGS · SLEWING RING BEARING

KUD02800
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD02800

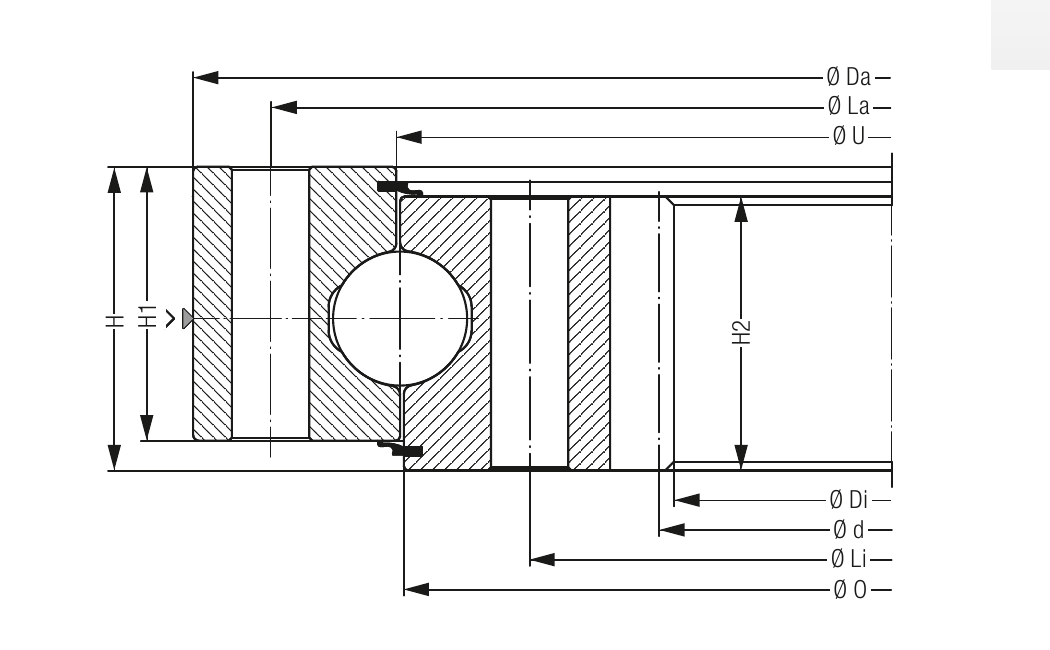

PRIUS BEARINGS KUD02800 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

KUD02800
parameters

Key dimensions and load information for preliminary selection.

ModelKUD02800
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,205 kg
Outside diameter Da (mm)2,971 mm
Inside diameter di (mm)2,544 mm
Ring height H (mm)109 mm
Outer reference ØO (mm)2,800 mm
Inner reference ØU (mm)2,800 mm
Outer ring height H1 (mm)100 mm
Inner ring height H2 (mm)99 mm
Outer mounting length La (mm)2,905 mm
Inner mounting length Li (mm)2,695 mm
Mounting hole count60
Bolt diameter (mm)30 mm
Hole pitch diameter d (mm)2,560 mm
Gear module16
Gear tooth count-160
Tooth correction-8
Tooth width b (mm)100 mm
Tooth force, standard (kN)146.8 kN
Tooth force, maximum (kN)293.6 kN
Basic static axial load rating C0a (kN)20,361 kN
Basic dynamic axial load rating Ca (kN)1,379 kN
Bearing typeKUD 50 VJ internal gear
