PRIUS BEARINGS · SLEWING RING BEARING

KUD02538
slewing ring bearing

KUD02538 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 2660 mm, inside diameter 2288 mm, height 120 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD02538

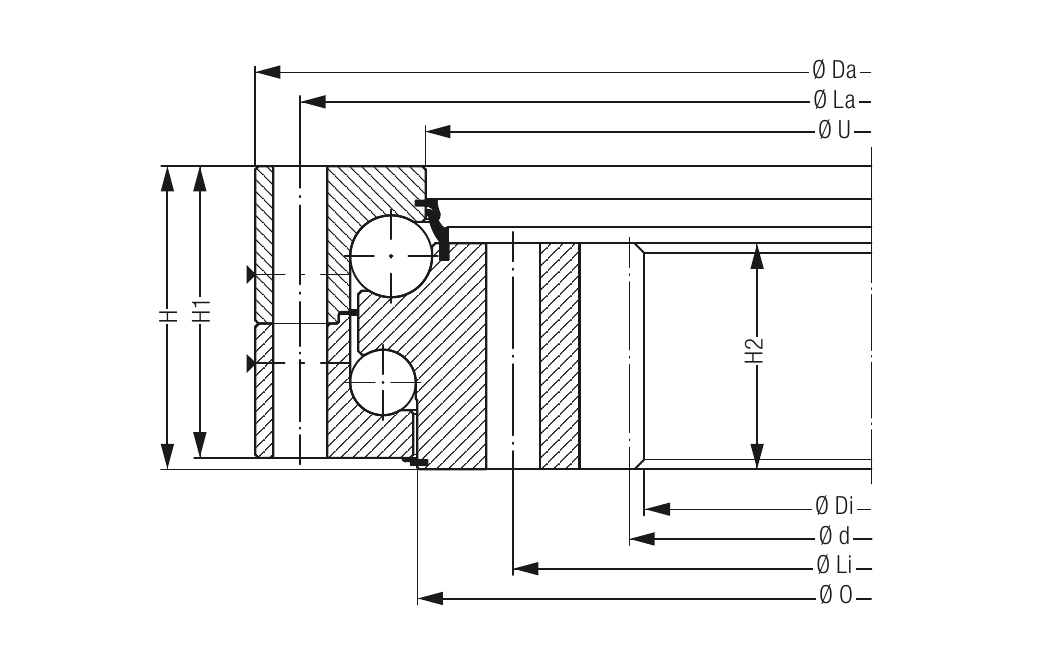

Liebherr catalogue section reference for KUD02538

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD02538
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD02538
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)963 kg
Outside diameter Da (mm)2,660 mm
Inside diameter di (mm)2,288 mm
Ring height H (mm)120 mm
Outer reference ØO (mm)2,515 mm
Inner reference ØU (mm)2,509 mm
Outer ring height H1 (mm)114 mm
Inner ring height H2 (mm)91 mm
Outer mounting length La (mm)2,615 mm
Inner mounting length Li (mm)2,430 mm
Mounting hole count60
Mounting hole diameter (mm)24 mm
Hole pitch diameter d (mm)2,304 mm
Gear module16
Gear tooth count-144
Tooth correction-8
Tooth width b (mm)91 mm
Tooth force, standard (kN)133.6 kN
Tooth force, maximum (kN)267.2 kN
Basic static axial load rating C0a (kN)14,904 kN
Basic dynamic axial load rating Ca (kN)958 kN
Bearing typeKUD 30 ZJ internal gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingKUD02400outside diameter 2643.2 mm, inside diameter 2224 mm, height 124 mm →Liebherr · Slewing ring bearingKUD02500outside diameter 2741.2 mm, inside diameter 2324 mm, height 124 mm →Liebherr · Slewing ring bearingKUD02490outside diameter 2661 mm, inside diameter 2240 mm, height 109 mm →Liebherr · Slewing ring bearingKUD02350outside diameter 2573.2 mm, inside diameter 2189 mm, height 114 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD02538?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD02538, provide the complete reference and suffix, confirm outside diameter 2660 mm, inside diameter 2288 mm, height 120 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
