PRIUS BEARINGS · SLEWING RING BEARING

KUD02130
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD02130

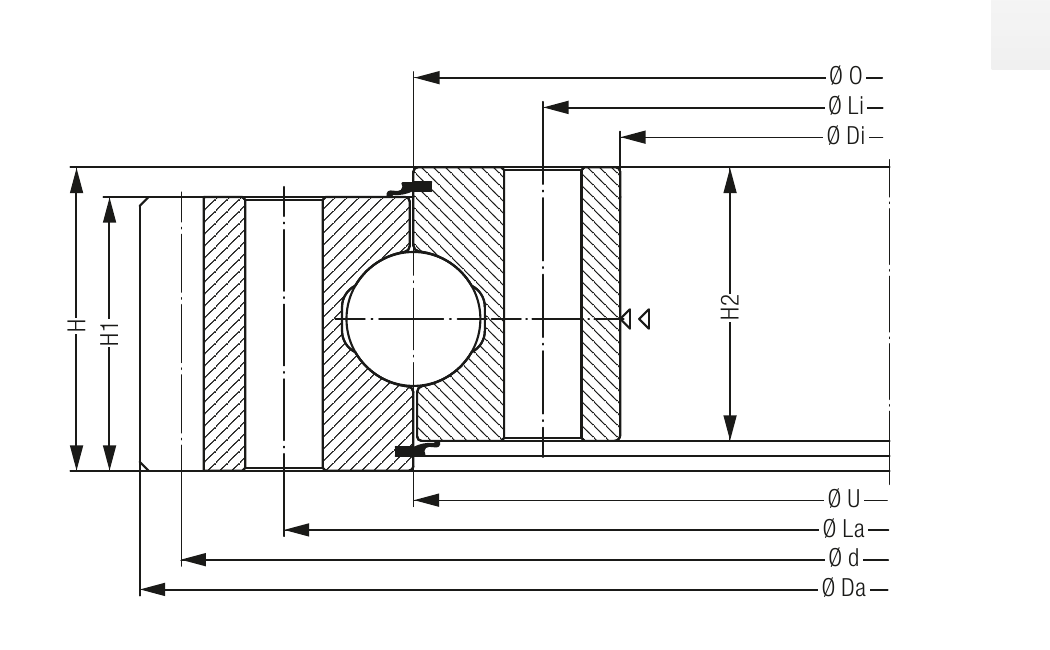

PRIUS BEARINGS KUD02130 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

KUD02130
parameters

Key dimensions and load information for preliminary selection.

ModelKUD02130
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)931 kg
Outside diameter Da (mm)2,380.8 mm
Inside diameter di (mm)1,959 mm
Ring height H (mm)109 mm
Outer reference ØO (mm)2,130 mm
Inner reference ØU (mm)2,130 mm
Outer ring height H1 (mm)100 mm
Inner ring height H2 (mm)99 mm
Outer mounting length La (mm)2,235 mm
Inner mounting length Li (mm)2,025 mm
Mounting hole count48
Bolt diameter (mm)30 mm
Hole pitch diameter d (mm)2,336 mm
Gear module16
Gear tooth count146
Tooth correction8
Tip Reduction-1.6
Tooth width b (mm)100 mm
Tooth force, standard (kN)146.8 kN
Tooth force, maximum (kN)293.6 kN
Basic static axial load rating C0a (kN)15,430 kN
Basic dynamic axial load rating Ca (kN)1,244 kN
Bearing typeKUD 50 VA external gear
