Slewing Rings/Liebherr references/KUD01900-040VA15-900-000← View all models

PRIUS BEARINGS · SLEWING RING BEARING

KUD01900-040VA15-900-000
slewing ring bearing

KUD01900-040VA15-900-000 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 2097.6 mm, inside diameter 1755 mm, height 104 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS KUD01900-040VA15-900-000 external gear slewing ring bearingEXTERNAL GEAR / KUD01900-040VA15-900-000

DIMENSIONAL REFERENCE

MODEL KUD01900-040VA15-900-000

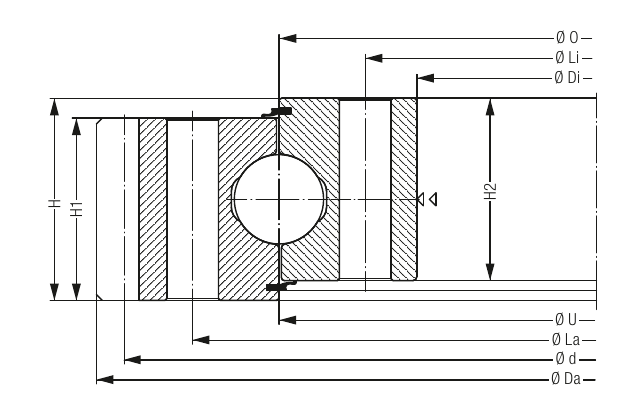

Liebherr catalogue section reference for KUD01900-040VA15-900-000

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD01900-040VA15-900-000
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD01900-040VA15-900-000
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeExternal gear KUD 40 VA
Weight (kg)622 kg
Outside diameter Da (mm)2,097.6 mm
Inside diameter di (mm)1,755 mm
Ring height H (mm)104 mm
Outer pitch diameter (mm)1,985 mm
Inner pitch diameter (mm)1,815 mm
Mounting hole count52
Mounting hole diameter (mm)27 mm
Gear module12
Gear tooth count172
Basic static axial load rating C0a (kN)11,008 kN
Basic dynamic axial load rating Ca (kN)947 kN
Bearing typeKUD 040 external gear
Outer reference ØO (mm)1,900 mm
Inner reference ØU (mm)1,900 mm
Outer ring height H1 (mm)92 mm
Inner ring height H2 (mm)92 mm
Outer mounting length La (mm)1,985 mm
Inner mounting length Li (mm)1,815 mm
Pinion tooth count z172
Pinion pitch diameter Pd (mm)2,064 mm
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Internal gear KUD 40 VJKUD01900-040VJ15-900-000outside diameter 2045.1 mm, inside diameter 1694.4 mm, height 104 mm →Liebherr · Slewing ring bearingKUD01900outside diameter 2061.6 mm, inside diameter 1792 mm, height 84 mm →Liebherr · External gear KUD 30 VAKUD01900-030VA15-900-000outside diameter 2061.6 mm, inside diameter 1792 mm, height 84 mm →Liebherr · Internal gear KUD 30 VJKUD01900-030VJ15-900-000outside diameter 2008 mm, inside diameter 1738.4 mm, height 84 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD01900-040VA15-900-000?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD01900-040VA15-900-000, provide the complete reference and suffix, confirm outside diameter 2097.6 mm, inside diameter 1755 mm, height 104 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
