PRIUS BEARINGS · SLEWING RING BEARING

KUD01650
slewing ring bearing

KUD01650 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 1833.6 mm, inside diameter 1523 mm, height 94 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD01650

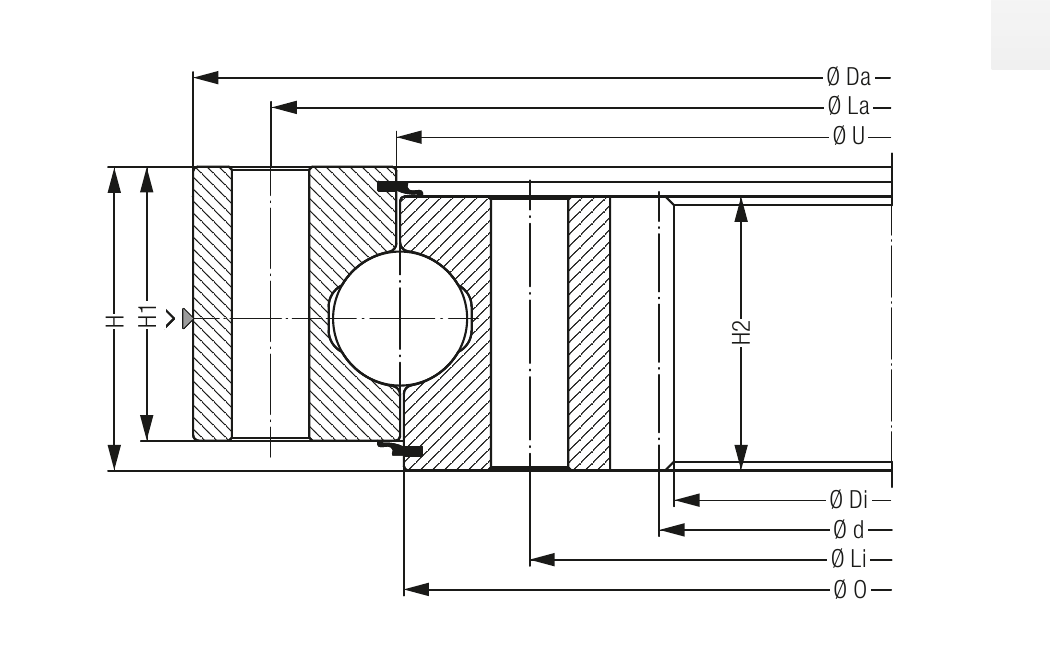

Liebherr catalogue section reference for KUD01650

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD01650
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD01650
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)437 kg
Outside diameter Da (mm)1,833.6 mm
Inside diameter di (mm)1,523 mm
Ring height H (mm)94 mm
Outer pitch diameter (mm)1,725 mm
Inner pitch diameter (mm)1,575 mm
Mounting hole count52
Mounting hole diameter (mm)24 mm
Gear module12
Gear tooth count150
Basic static axial load rating C0a (kN)8,366 kN
Basic dynamic axial load rating Ca (kN)784 kN
Bearing typeKUD 035 external gear
Outer reference ØO (mm)1,650 mm
Inner reference ØU (mm)1,650 mm
Outer ring height H1 (mm)82 mm
Inner ring height H2 (mm)82 mm
Outer mounting length La (mm)1,725 mm
Inner mounting length Li (mm)1,575 mm
Pinion tooth count z150
Pinion pitch diameter Pd (mm)1,800 mm
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · External gear KUD 35 VAKUD01650-035VA15-900-000outside diameter 1833.6 mm, inside diameter 1523 mm, height 94 mm →Liebherr · Internal gear KUD 35 VJKUD01650-035VJ15-900-000outside diameter 1650 mm, inside diameter 1466.4 mm, height 94 mm →Liebherr · Slewing ring bearingKUD01750outside diameter 1929.6 mm, inside diameter 1623 mm, height 94 mm →Liebherr · Slewing ring bearingKUD01600outside diameter 1761.6 mm, inside diameter 1492 mm, height 84 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD01650?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD01650, provide the complete reference and suffix, confirm outside diameter 1833.6 mm, inside diameter 1523 mm, height 94 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
