Slewing Rings/Liebherr references/KUD00955-025VA15-900-000← View all models

PRIUS BEARINGS · SLEWING RING BEARING

KUD00955-025VA15-900-000
slewing ring bearing

KUD00955-025VA15-900-000 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 1096.2 mm, inside diameter 855 mm, height 80 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS KUD00955-025VA15-900-000 external gear slewing ring bearingEXTERNAL GEAR / KUD00955-025VA15-900-000

DIMENSIONAL REFERENCE

MODEL KUD00955-025VA15-900-000

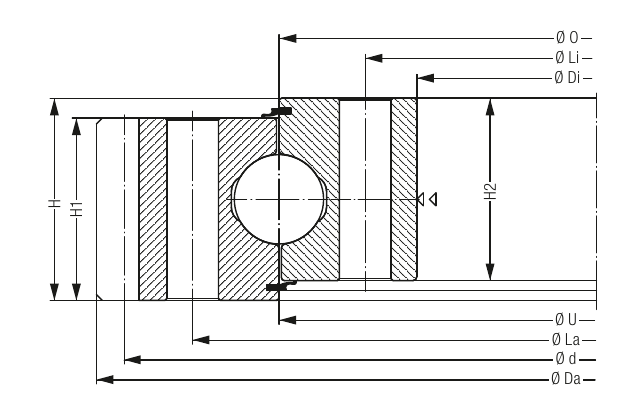

Liebherr catalogue section reference for KUD00955-025VA15-900-000

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD00955-025VA15-900-000
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD00955-025VA15-900-000
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeExternal gear KUD 25 VA
Weight (kg)158 kg
Outside diameter Da (mm)1,096.2 mm
Inside diameter di (mm)855 mm
Ring height H (mm)80 mm
Outer pitch diameter (mm)1,016 mm
Inner pitch diameter (mm)895 mm
Mounting hole count30
Mounting hole diameter (mm)20 mm
Gear module9
Gear tooth count120
Basic static axial load rating C0a (kN)3,383 kN
Basic dynamic axial load rating Ca (kN)443 kN
Bearing typeKUD 025 external gear
Outer reference ØO (mm)955 mm
Inner reference ØU (mm)955 mm
Outer ring height H1 (mm)71 mm
Inner ring height H2 (mm)54 mm
Outer mounting length La (mm)1,016 mm
Inner mounting length Li (mm)895 mm
Pinion tooth count z120
Pinion pitch diameter Pd (mm)1,080 mm
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingKUD00955outside diameter 1096.2 mm, inside diameter 855 mm, height 80 mm →Liebherr · Internal gear KUD 25 VJKUD00955-025VJ15-900-000outside diameter 1055 mm, inside diameter 810 mm, height 80 mm →Liebherr · External gear KUD 25 VAKUD01055-025VA15-900-000outside diameter 1198 mm, inside diameter 955 mm, height 80 mm →Liebherr · External gear KUD 25 VAKUD00855-025VA15-900-000outside diameter 997.2 mm, inside diameter 755 mm, height 80 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD00955-025VA15-900-000?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD00955-025VA15-900-000, provide the complete reference and suffix, confirm outside diameter 1096.2 mm, inside diameter 855 mm, height 80 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
