Slewing Rings/PRIUS BEARINGS/RK6-25E1Z← View all models

PRIUS BEARINGS · SLEWING RING BEARING

RK6-25E1Z
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS RK6-25E1Z external gear slewing ring bearingEXTERNAL GEAR / RK6-25E1Z

DIMENSIONAL REFERENCE

MODEL RK6-25E1Z

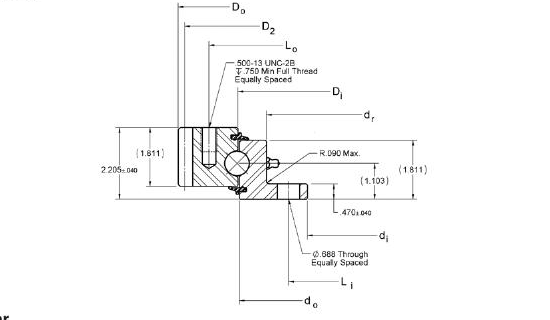

PRIUS BEARINGS RK6-25E1Z 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

RK6-25E1Z
parameters

Key dimensions and load information for preliminary selection.

ModelRK6-25E1Z
Brand / alternativePRIUS BEARINGS · Alternative for Kaydon
TypeSlewing ring bearing
Outside diameter OD (in)29.150 in
Inside diameter ID (in)21.030 in
Inner reference diameter (in)25.280 in
Weight (lb)115 lb
Outer hole circle OBC (in)27.250 in
Inner hole circle IBC (in)22.130 in
Mounting hole count15 / 18
Pitch diameter (in)28.750 in
Moment rating (ft-lb)49,800 ft-lb
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Kaydon · Slewing ring bearingRK6-16E1ZView dimensions and engineering data →Kaydon · Slewing ring bearingRK6-22E1ZView dimensions and engineering data →Kaydon · Slewing ring bearingRK6-29E1ZView dimensions and engineering data →Kaydon · Slewing ring bearingRK6-33E1ZView dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
