PRIUS BEARINGS · SLEWING RING BEARING

HT10-42E1Z
slewing ring bearing

HT10-42E1Z is listed as a Kaydon catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 47.84 in, inside diameter 36 in. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS HT10-42E1Z external gear slewing ring bearingEXTERNAL GEAR / HT10-42E1Z

DIMENSIONAL REFERENCE

MODEL HT10-42E1Z

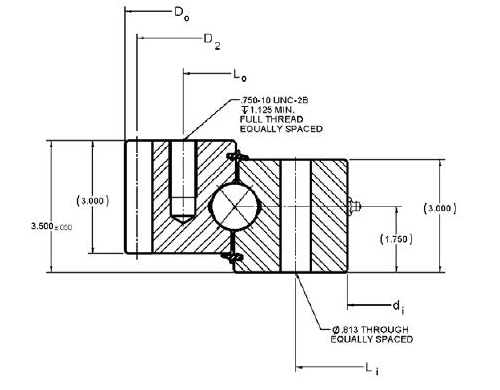

Kaydon catalogue section reference for HT10-42E1Z

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

HT10-42E1Z
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelHT10-42E1Z
Brand / alternativePRIUS BEARINGS · Alternative for Kaydon
TypeExternal gear HT series
Outside diameter OD (in)47.840 in
Inside diameter ID (in)36.000 in
Weight (lb)562 lb
Outer hole circle OBC (in)44.750 in
Inner hole circle IBC (in)38.750 in
Mounting hole count32 / 36
Pitch diameter (in)47.200 in
Moment rating (ft-lb)457,000 ft-lb
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Kaydon · External gear HT seriesHT10-48E1Zoutside diameter 53.84 in, inside diameter 42 in →Kaydon · External gear HT seriesHT10-36E1Zoutside diameter 41.84 in, inside diameter 30 in →Kaydon · External gear HT seriesHT10-54E1Zoutside diameter 59.84 in, inside diameter 48 in →Kaydon · External gear HT seriesHT10-30E1Zoutside diameter 35.84 in, inside diameter 24 in →

FREQUENT QUESTIONS

Can PRIUS review an alternative for HT10-42E1Z?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For HT10-42E1Z, provide the complete reference and suffix, confirm outside diameter 47.84 in, inside diameter 36 in, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
