Slewing Rings/PRIUS BEARINGS/16366001← View all models

PRIUS BEARINGS · SLEWING RING BEARING

16366001
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 16366001

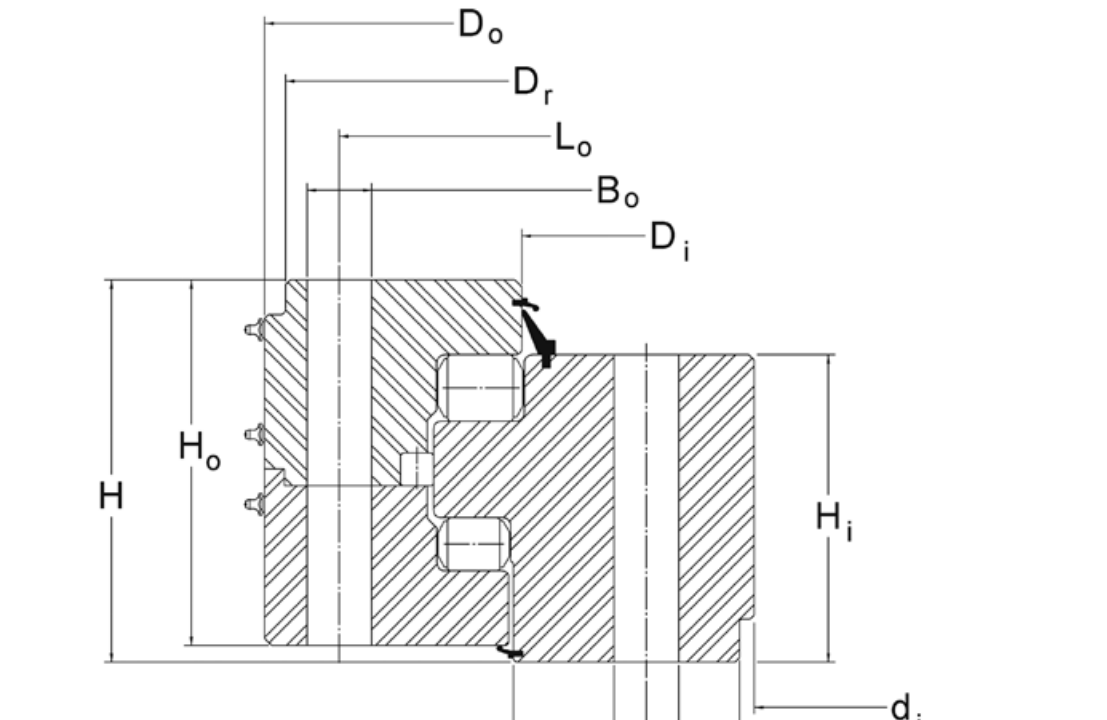

PRIUS BEARINGS 16366001 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

16366001
parameters

Key dimensions and load information for preliminary selection.

Model16366001
Brand / alternativePRIUS BEARINGS · Alternative for Kaydon
TypeSlewing ring bearing
Outside diameter OD (in)236.220 in
Inside diameter ID (in)210.236 in
Overall height HT (in)12.205 in
Weight (lb)25,800 lb
Moment rating (ft-lb)49,976,000 ft-lb
Gear ConfigurationNo gear
Inner reference OI (in)225.433 in
Outer Reference Diameter In224.409 in
Outer Ring Height In9.842 in
Inner Ring Height In11.811 in
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Kaydon · Slewing ring bearing13004001View dimensions and engineering data →Kaydon · Slewing ring bearing16015001View dimensions and engineering data →Kaydon · Slewing ring bearing16258001View dimensions and engineering data →Kaydon · Slewing ring bearing16264001View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
